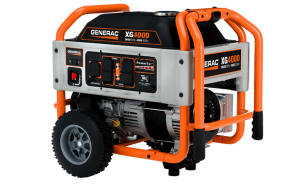

Product Series XG4000
Model (Configuration):
-5778-2 (EPA/49-State)
-5843-1 (EPA/CSA-Canada)
-5844-1(EPA/CARB-California)
AC Rated Output Running Watts: 3600
AC Maximum Output Starting Watts: 4500
Rated AC Voltage: 120/240 VAC
Rated AC Frequency: 60 Hz
Rated 120/240 VAC Amperage: 30/15
Max 120/240 VAC Amperage: 37.5/18.75
Engine Displacement: 216cc
Engine Type: OHVI
Engine RPM: 3600
Recommended Oil: 10W-30/SAE 30
Lubrication Method: Oil Pump
Choke Location: On Engine
Fuel Shut Off: On Control Panel
Starting Method: Recoil Pull Start
Low Oil Shutdown: Low Pressure
Neutral Bonded to Ground: Yes



Length in (mm):28 (715)
Width in (mm): 22.5 (570)
Height in (mm): 24.75 (630)
Extended Length in (mm): 42.25 (1075)
Carton Length in (mm): 28 (711)
Carton Width in (mm): 24 (610)
Carton Height in (mm): 21 (533)
Unit Weight lbs (kg): 140 (64)
